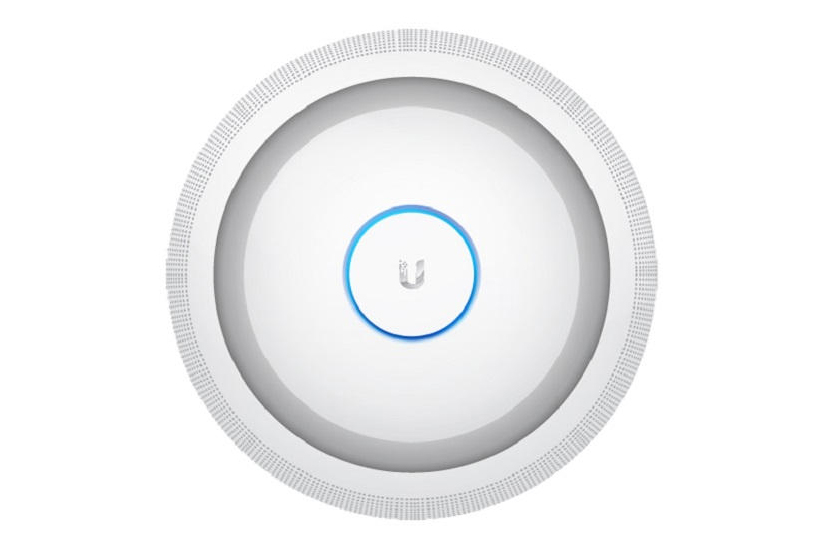

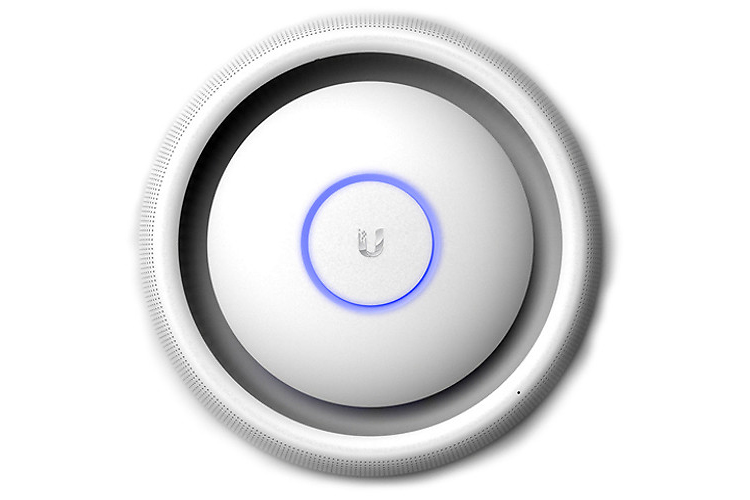

Ubiquiti UniFi AP AC EDU Indoor Access Point With Public Address System

Giá: Liên hệ
Giới thiệu:
The Ubiquiti UniFi AP AC EDU features the latest Wi-Fi 802.11ac, 3x3 MIMO technology, and integrates Wi-Fi and public address capabilities, making it perfect for campus-wide deployment.

Ubiquiti UniFi AC EDU Key Features

  • WiFi Connected Speaker
  • 802.11ac
  • 3x3 MIMO
  • Simultaneous dual-band
  • 2.4GHz throughput of 450Mbps
  • 5GHz throughput of 1300Mbps
  • 1 Gigabit Ethernet Port

The UAP-AC-EDU is ideally suited for indoor deployments with a range of 122m (400ft). Announcements can be broadcast from an Android or iOS based device using the UniFi Broadcast App.







The UniFi AC-EDU combines enterprise performance, unlimited scalability, and a central management controller. UniFi 802.11AC Dual‑Radio Access Points (APs) have a refined industrial design and can be easily installed using the included mounting hardware.

The UAP-AC-EDU is easily accessible through any standard web browser, and the UniFi Controller software is a powerful software engine ideal for high-density client deployments requiring low latency and high uptime performance. Use the UniFi Controller software to quickly configure and administer an enterprise Wi-Fi network – no special training required. RF map and performance features, real-time status, automatic UAP device detection, and advanced security options are all seamlessly integrated. UniFi

Unlike traditional enterprise Wi-Fi systems that use a hardware controller, UniFi comes bundled with a non-dedicated software controller that can be deployed on an on-site PC, Mac, or Linux machine; in a private cloud; or using a public cloud service.

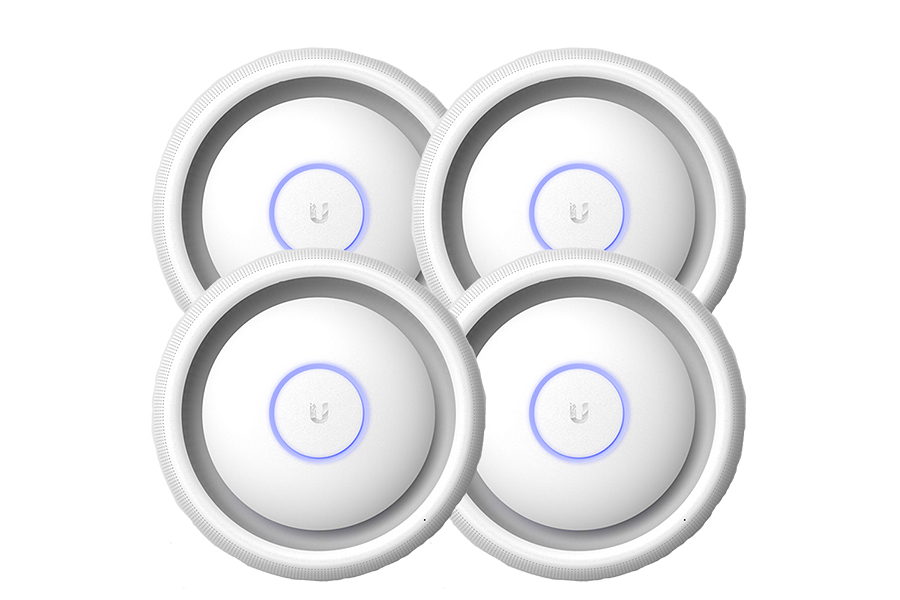

The UniFi 802.11AC Dual-Radio APs feature the latest in Wi-Fi 802.11AC MIMO technology. Intuitive UniFi Controller Software Configure and manage your APs with the easy-to-learn user interface. Build wireless networks as big or small as needed. Start with one (or upgrade to a three‑pack) and expand to thousands while maintaining a single unified management system.



Ubiquiti UniFi UAP-AC-EDU Technical Specification

General

  • Dimensions 287.5 x 287.5 x 125.9 mm (11.32 x 11.32 x 4.96")
  • Weight 1.8 kg (3.97 lb)
  • Networking Interface (1) 10/100/1000 Ethernet Port
  • Buttons Reset Antennas (3) Dual-Band
  • Antennas, 3 dBi Each
  • Wi-Fi Standards 802.11 a/b/g/n/ac
  • Power Method Passive Power over Ethernet (48V), 803.2at Supported (Supported Voltage Range: 44 to 57VDC)
  • Power Supply 48V, 0.5A PoE Gigabit Adapter*
  • Maximum Power Consumption 20W
  • Maximum TX Power 2.4 GHz 22 dBm 5 GHz 22 dBm
  • BSSID Up to Four per Radio
  • Power Save Supported
  • Wireless Security WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
  • Certifications CE, FCC, IC
  • Mounting Wall/Ceiling (Kits Included)
  • Operating Temperature -10 to 70° C (14 to 158° F)
  • Operating Humidity 5 to 95% Noncondensing

Advanced Traffic Management

  • VLAN 802.1Q
  • Advanced QoS Per-User Rate Limiting
  • Guest Traffic Isolation Supported
  • WMM Voice, Video, Best Effort, and Background
  • Concurrent Clients 200+

Supported Data Rates (Mbps)

  • Standard Data Rates
  • 802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
  • 802.11n 6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40)
  • 802.11ac 6.5 Mbps to 1300 Mbps (MCS0 - MCS9 NSS1/2/3, VHT 20/40/80)
  • 802.11b 1, 2, 5.5, 11 Mbps
  • 802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps

Loudspeaker Acoustics

  • Sensitivity 94 dB (1W/1 m)
  • Maximum SPL 103 dB @ 1 m
  • Frequency Response 100 - 20,000 Hz
  • Type Two-Way Speaker with Second-Order HP Filter

Microphone Acoustics

  • Sensitivity -40 dB
  • Polar Pattern Omni
  • Frequency Response 50 - 20,000 Hz

Ubiquiti UniFi UAP-AC-EDU Technical Specification
General
Dimensions 287.5 x 287.5 x 125.9 mm (11.32 x 11.32 x 4.96")
Weight 1.8 kg (3.97 lb)
Networking Interface (1) 10/100/1000 Ethernet Port
Buttons Reset Antennas (3) Dual-Band
Antennas, 3 dBi Each
Wi-Fi Standards 802.11 a/b/g/n/ac
Power Method Passive Power over Ethernet (48V), 803.2at Supported (Supported Voltage Range: 44 to 57VDC)
Power Supply 48V, 0.5A PoE Gigabit Adapter*
Maximum Power Consumption 20W
Maximum TX Power 2.4 GHz 22 dBm 5 GHz 22 dBm
BSSID Up to Four per Radio
Power Save Supported
Wireless Security WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
Certifications CE, FCC, IC
Mounting Wall/Ceiling (Kits Included)
Operating Temperature -10 to 70° C (14 to 158° F)
Operating Humidity 5 to 95% Noncondensing
Advanced Traffic Management
VLAN 802.1Q
Advanced QoS Per-User Rate Limiting
Guest Traffic Isolation Supported
WMM Voice, Video, Best Effort, and Background
Concurrent Clients 200+
Supported Data Rates (Mbps)
Standard Data Rates
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n 6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40)
802.11ac 6.5 Mbps to 1300 Mbps (MCS0 - MCS9 NSS1/2/3, VHT 20/40/80)
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Loudspeaker Acoustics
Sensitivity 94 dB (1W/1 m)
Maximum SPL 103 dB @ 1 m
Frequency Response 100 - 20,000 Hz
Type Two-Way Speaker with Second-Order HP Filter
Microphone Acoustics
Sensitivity -40 dB
Polar Pattern Omni
Frequency Response 50 - 20,000 Hz
- Bảo hành: theo chính sách bảo hành của hãng: 1 năm đối với  thiết bị, 03 tháng đối với nguồn POE.
