Cisco RV340W Dual WAN Gigabit Wireless-AC VPN Router RV340W

Small Business RV Series Router

Cisco RV340W Dual WAN Gigabit Wireless-AC VPN Router RV340W

Giá: Liên hệ

Giới thiệu:

Kết nối an toàn cho doanh nghiệp nhỏ của bạn với mạng bên ngoài cũng như giữa các thiết bị nội bộ. Thiết bị định tuyến Rounter dành cho doanh nghiệp nhỏ RV cung cấp công nghệ mạng riêng ảo (VPN) giúp cho nhân viên từ xa sử dụng internet để kết nối với nạng nội bộ thông qua một đường dẫn an toàn.
VPN với khả năng truy cập từ xa lên đến 100 người.

Mua ngay

Tích hợp tường lửa, mã hóa nâng cao và các tính năng xác thực bảo vệ chống lại các mối đe dọa bên ngoài, giữ cho mạng nội bộ của bạn được an toàn.
Dễ dàng cài đặt và cấu hình, kết nối nhanh chóng.
Các doanh nghiệp nhỏ thường xuyên tiếp xúc với các mối đe dọa trên Internet. Với bộ định tuyến không dây Cisco VPN Dual Gigabit RV340W giúp kết nối Internet và bảo vệ nhân viên tránh các nội dung không mong muốn và các trang web độc hại mà không ảnh hưởng đến trải nghiệm trực tuyến. RV340W giúp tăng năng suất nhân viên và hiệu suất mạng tổng thể bằng cách hạn chế các trang web không thích hợp và loại bỏ lưu lượng mạng không mong muốn. Người dùng được bảo vệ khỏi các trang web độc hại hoặc bị xâm phạm.
Với giao diện người dùng trực quan, RV340W cho phép bạn thiết lập và sử dụng trong vài phút. Độ tin cậy bảo mật cao, thậm chi bạn sẽ không biết đến sự tồn tại của nó.

Tính năng và lợi ích

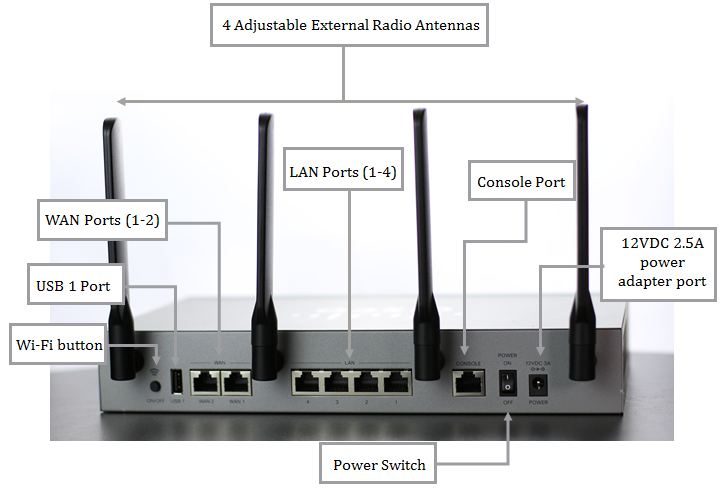

router-cisco-RV340W

●   2 WAN ports (RJ-45) allow load balancing and resiliency

●   4 LAN ports (RJ-45) provide high-performance connectivity

●   Integrated 802.11ac WLAN access point with external antennas (Wave 2 MU-MIMO)

●   2 USB ports support a 3G/4G modem or flash drive

●   Flexible VPN functionality for secure interconnectivity

●   Support for the Cisco AnyConnect® Secure Mobility Client, ideal for remote access by mobile devices

●   Dynamic web filtering, enabling business efficiency and security while connecting to the Internet

●   Client and application identification that allows Internet access policies for end devices and Internet applications, to help ensure performance and security

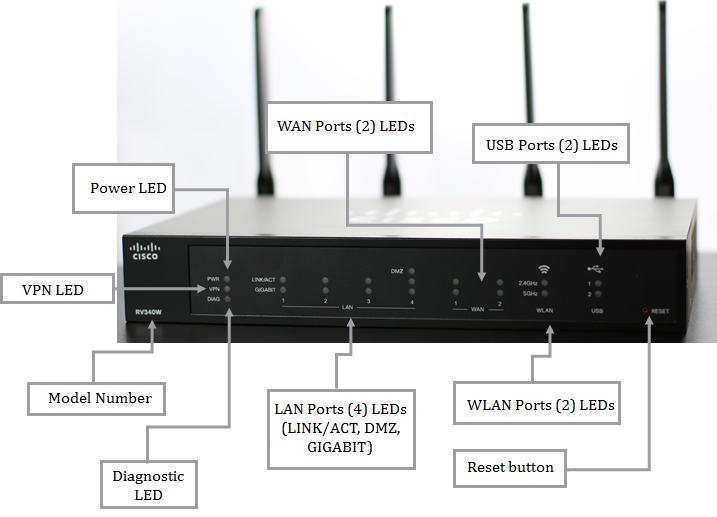

router-cisco-RV340W

Description	Specification
Ports
Ethernet WAN	2 RJ-45 Gigabit Ethernet
Ethernet LAN	4 RJ-45 Gigabit Ethernet
Console/serial	1 RJ-45 port for future use
USB	2 for external 3G/4G dongle or flash drive
Security
Firewall	Stateful packet inspection, up to 900 Mbps throughput for TCP, User Datagram Protocol (UDP) traffic
Quality of Service (QoS)	Assign detailed QoS (Class of Service (CoS)/Differentiated Services Code Point (DSCP)/policies) settings per application or end device
Web security and app visibility (licensed feature)	Dynamic web filtering: Cloud based, more than 80 categories, more than 450 million domains classified Application identification: Assign policies to Internet applications Endpoint identification: Assign policies based on end device category and operating system
VPN
IPsec	50 simultaneous connections (any combination of remote access and site-to-site), up to 650 Mbps throughput
IPsec remote access	Yes (remote access from any standards-based IPsec client and Cisco IPsec VPN (EasyVPN)
Layer 2 Tunneling Protocol (L2TP) over IPsec	Yes
Generic Routing Encapsulation (GRE) over IPsec	Yes
Cisco SSL VPN (Cisco AnyConnect)	2 tunnels included. Max 50 tunnels with optional router licenses. Up to 33 Mbps throughput Also requires Cisco AnyConnect end user licenses to use on the end device Ideal for mobile devices
Point-to-Point Tunneling Protocol (PPTP)	25 connections, up to 100 Mbps throughput
Teleworker mode (Cisco IPsec VPN)	Router acts as a client to connect to central VPN gateway in teleworker mode
VPN pass-through	IPsec, PPTP, L2TP
Management
Management protocols	Web browser (HTTP/HTTPS) Simple Network Management Protocol (SNMP) v1, v2c, and v3 Representational State Transfer (REST) API (future use)
Firmware upgrade options	Via local PC, USB stick, or from Cisco.com via web browser Unattended automatic firmware upgrades
LAN
VLAN	Yes (32)
Port security	Yes, 802.1X
QoS	Yes
Link aggregation	Yes (static, no Link Aggregation Control Protocol [LACP]), up to 4 links
IPV6	Dual stack, 6rd, 6in4
WAN	Dynamic Host Configuration Protocol (DHCP) client, static IP, Point-to-Point Protocol over Ethernet (PPPoE), PPTP, L2TP, transparent bridge
Routing	Routing Information Protocol (RIP) v1 and v2, and RIP for IPv6 (RIPng) Inter-VLAN routing Static routing, Internet Group Management Protocol (IGMP) proxy
Network Address Translation (NAT)	Port forwarding Port Address Translation (PAT) One-to-one NAT VPN NAT traversal Session Initiation Protocol (SIP) Application-Level Gateway (ALG), FTP ALG
NAT max sessions	>40,000
NAT max connections per second	3000
ChangeIP.com, DynDNS.com, No-IP.com	ChangeIP.com, DynDNS.com, No-IP.com
Dual Stack, Dual Stack Lite, 6in4	Dual Stack, Dual Stack Lite, 6in4
Hardware DMZ (network edge)	Yes (when enabled, one LAN port will be DMZ port)
DMZ host	Yes
System
CPU	1.2-GHz, ARM based architecture
RAM	DDR3 1 GB
Flash	256 MB

Wireless

Standards	IEEE 802.11ac, 802.11n, 802.11g, 802.11b, 802.11a, 802.1X (security authentication), 802.1Q (VLAN), 802.11i (WPA2 security), 802.11e (wireless QoS)
Antennas	4 external fixed paddle antennas
802.1X supplicant	Yes
SSID-to-VLAN mapping	Yes
Auto channel selection	Yes
WPA/WPA2	Yes, including enterprise authentication
Access control	Yes, MAC filtering
Rogue access point detection	No
QoS	Wi-Fi Multimedia (WMM) with unscheduled automatic power save
Performance
Wireless throughput	PHY data rate: 2.4 GHz: 450 Mbps (64-QAM), 600 Mbps (256-QAM) 5 GHz: 1.7 Gbps (256-QAM), 2.1 Gbps (1024-QAM) Total: Up to 2.7 Gbps (real-world throughput will vary)
Recommended user support	Up to 50 users at 2.4 GHz and 124 users at 5 GHz simultaneously
Captive Portal for guest access	Yes
Wireless
Frequency	Dual concurrent radios (2.4 and 5 GHz)
WLAN	802.11n/ac 4x4 multiple-Input Multiple-Output (MIMO) with 4 spatial streams at 5 GHz 3x3 MIMO with 3 spatial streams at 2.4 GHz 20-, 40-, and 80-MHz channels for 802.11ac 20- and 40-MHz channels for 802.11n PHY data rate: 2.4 GHz: 450 Mbps (64-QAM), 600 Mbps (256-QAM) 5 GHz: 1.7 Gbps (256-QAM), 2.1 Gbps (1024-QAM) Total: up to 2.7 Gbps 802.11 Dynamic Frequency Selection (DFS) Multiuser MIMO (MU-MIMO) (up to 3 clients simultaneously)
Data rates supported	802.11a/b/g: ● 54, 48, 36, 24, 18, 12, 9, 6, 11, 5.5, 2, and 1 Mbps ● 802.11n: 6.5 to 450 Mbps ◦ 20-MHz bandwidth: MCS 0-15 for supported data rates ◦ 40-MHz bandwidth: MCS 0-15 for supported data rates ● 802.11ac: 6.5 Mbps to 1.7 Gbps ◦ 20-MHz bandwidth: MCS 0-9 for supported data rates ◦ 40-MHz bandwidth: MCS 0-9 for supported data rates ◦ 80-MHz bandwidth: MCS 0-9 for supported data rates
Frequency band and operating channels	A (A regulatory domain): 2412 to ~2462 MHz: 11 channels 5.15 to 5.25 GHz: 4 channels 5.25 to 5.35 GHz: 4 channels 5.47 to 5.725 GHz: 8 channels 5.725 to 5.825 GHz: 5 channels E (E regulatory domain): 2412 to ~2472 MHz: 13 channels 5.15 to 5.25 GHz: 4 channels 5.25 to 5.35 GHz: 4 channels 5.47 to 5.725 GHz: 8 channels C (C regulatory domain): 2412 to ~2462 MHz: 13 channels 5.15 to 5.25 GHz: 4 channels 5.25 to 5.35 GHz: 4 channels
Transmitted output power	2.4 GHz ● 802.11b: 17.5 +/- 2 dBm ● 802.11g: 17.5 +/- 2 dBm @ 6 Mbps ● 802.11g: 15.5 +/- 2 dBm @ 54 Mbps ● 802.11n (HT20): 17.5 +/- 2 dBm @ MCS0 ● 802.11n (HT20): 15.5 +/- 2 dBm @ MCS7 ● 802.11n (HT40): 15.5 +/- 2 dBm @ MCS7 5 GHz ● 802.11a: 18.5 +/- 2 dBm @ 6 Mbps ● 802.11a: 14 +/- 2 dBm @ 54 Mbps ● 802.11n (HT20): 14 +/- 2 dBm @ MCS7 ● 802.11n (HT40): 14 +/- 2 dBm @ MCS7 802.11ac (VHT80): 12.0 +/- 2 dBm @ VHT9SS1
Wireless isolation	Wireless isolation between clients
Antenna gain in dBi	2.4 GHz: 3 dBi each antenna 5 GHz: 5 dBi each antenna
Receiver sensitivity	2.4 GHz ● 802.11b: -82 dBm @ 11 Mbps ● 802.11g: -71 dBm @ 54 Mbps ● 802.11n (HT20): -69 dBm @ MCS7 ● 802.11n (HT40): -67 dBm @ MCS7 5 GHz ● 802.11ac (VHT20): -59 dBm @ MCS8 ● 802.11ac (VHT40): -54 dBm @ MCS9 ● 802.11ac (VHT80): -51 dBm @ MCS9
Wireless Distribution System (WDS)	No
Fast roaming	No
Multiple SSIDs	8, 4 on each radio
Operating modes	Access point mode

Kích thước:

RV340W excluding antennas	280 x 44 x 170 mm (11 x 1.75 x 6.75 in)
RV340W with antennas	280 x 44 x 315 mm (11 x 1.75 x 12.40 in)
Product Weight
RV340W device only	1150 g (2.53 lb)
RV340W package/box	2400 g (5.29 lb)
Mean Time Between Failures (MTBF)	50,000 hours (demonstrated 25,000 hours)
Rack mountable	No
Fan	No
Included accessories	Power supply, power cord, Ethernet cable
Power supply	AC: 100–240V DC: 12V/2.5A
Certification	RV340W: FCC Class B, CE Class B, UL, cUL, CB, CCC, BSMI, KC, Anatel
Operating temperature	0° to 40°C (32° to 104°F)
Storage temperature	0° to 70°C (32° to 158°F)
Operating humidity	10% to 85% noncondensing
Storage humidity	5% to 90% noncondensing
