Cisco ISR 4331 (3GE,2NIM,1SM,4G FLASH,4G DRAM,IPB) ISR4331/K9

Giá: Liên hệ
Giới thiệu:
Bộ định tuyến dịch vụ tích hợp Cisco 4331 cung cấp 100 Mbps đến 300 Mbps và một khe mô-đun (SM-X), hỗ trợ cho cả mô-đun đơn và kép cung cấp sự linh hoạt trong các tùy chọn nâng cấp.

Product Details

Figure 2 shows the front panel of Cisco ISR4331/K9.
Cisco ISR4331/K9 Front Panel
Note:
USB Type B mini port Management port
Serial console port LEDs
USB Type A port AC Power
AUX Port Power switch

The LEDs include eight indicators.

Table 2 shows the LED descriptions.
LEDs Represents Color Description
POE0 POE PSU Green PoE is on and providing power.
Amber PoE is in a failed condition.
Off PoE supply is not present.
FLASH System Flash Status Blinking Green Compact flash/eUSB flash is present and currently being accessed.
TEMP Temperature Status Solid green All temperature sensors in the system are within acceptable range.
Amber One or more temperature sensors in the system are outside the acceptable range.
Off Temperature is not being monitored.
PWR System Power Green System power is on and functioning correctly.
Green blinking System power is in the process of shutting down.
Amber System power is up, but low level initialization failed.
Amber blinking System power is up, but the system failed to come out of reset.
Off System power is off.
SSD mSATA Slot Status Green SSD mSATA is present and enabled.
Amber Initialized with error.
Off Not present.
ISC ISC Slot Status Green PVDM4 is present and enabled.
Amber Initialized with error.
Off Not present.
FAN Fan Status Green All fans are operating.
Amber One fan has stopped working.
Blinking Amber Two or more fans have stopped working, or the fan tray has been removed.
Off Fans are not being monitored.
STAT System Status Solid green System operating normally.
Blinking amber BIOS/Rommon is booting.
Amber BIOS/Rommon has completed booting, and system is at Rommon prompt or booting platform software.
Off System is not out of reset or BIOS image is not loadable.

Figure 3 shows the back panel of Cisco ISR4331/K9.
Cisco ISR4331/K9 Back Panel
Note:
RJ45 Ports NIM Slots
SFP Ports SM-X Slot
·NIM slots support one double-wide or two signal-wide modules.
·An SM-X slot can be converted into a Network Interface Module (NIM) slot using an optional carrier card.

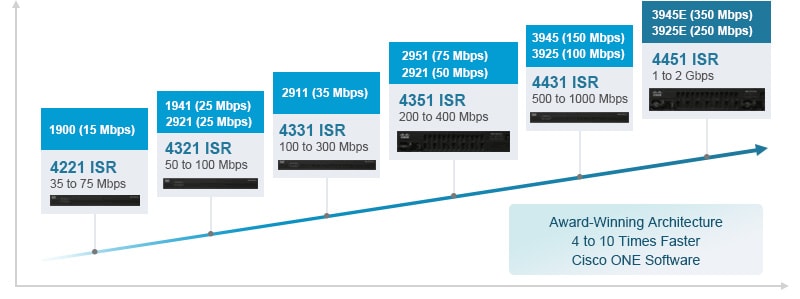

isr4000
Product Code Cisco ISR4331/K9
Aggregate Throughput 100 Mbps to 300 Mbps
Total onboard WAN or LAN 10/100/1000 ports 3
RJ-45-based ports 2
SFP-based ports 2
Enhanced service-module (SM-X) slot 1
NIM (Network Interface Modules) slots 2
Onboard ISC slot 1
Memory 4 GB (default) / 16 GB (maximum)
Flash Memory 4 GB (default) / 16 GB (maximum)
Power-supply options Internal: AC and PoE
Rack height 1 RU
Dimensions (H x W x D) 44.45 x 438.15 x 438.15 mm
Package Weight 12.96 Kg

The Modules, Cards, Licenses & Accessories

Cisco ISR4331/K9 is one of the Cisco 4000 series routers, which support new modules & cards slots, such as NIM, ISC, etc. Besides, Cisco ISR4331/K9 can upgrade by licenses.

Table 3 shows some recommended modules, cards, licenses and accessories of Cisco ISR4331/K9.
Items Models Descriptions
Smart Serial Cables CAB-SS-449FC Cisco CAB-SS-449FC RS-449 Cable, DCE Female to Smart Serial, 10 Feet
CAB-SS-V35FC Cisco CAB-SS-V35FC V.35 Cable, DCE Female to Smart Serial, 10 Feet
Console and Auxillary Cables CAB-AUX-RJ45 Cisco CAB-AUX-RJ45 Auxiliary Cable 8ft with RJ45 and DB25M
CAB-ETH-S-RJ45 Cisco Router Cable CAB-ETH-S-RJ45
CAB-CONSOLE-RJ45 Cisco CAB-CONSOLE-RJ45 Console Cable 6ft with RJ45 and DB9F
CAB-CONSOLE-USB Cisco CAB-CONSOLE-USB Console Cable 6 ft with USB Type A and mini-B
Licenses L-SL-4330-APP-K9= Cisco AppX license L-SL-4330-APP-K9= with 750 conns/ISRWAAS or 1300 conns/vWAAS for ISR4331
Network Interface Modules NIM-1MFT-T1/E1 Cisco Fourth-Generation Multiflex Trunk Voice and WAN network interface module
NIM-2CE1T1-PRI Cisco Multiflex Trunk Voice and WAN network interface module
NIM-4E/M Analog voice network interface card (ear and mouth)
NIM-2FXS Cisco Analog voice network interface card NIM-2FXS
NIM-2FXS/4FXO Cisco Analog voice network interface card NIM-2FXS/4FXO
NIM-8MFT-T1/E1 Cisco Fourth-Generation Multiflex Trunk Voice and WAN network interface module
SFPs for On-Board GE Ports GLC-SX-MMD Cisco GLC-SX-MMD 1000BASE-SX SFP transceiver module, MMF, 850nm, DOM
GLC-LH-SMD Cisco GLC-LH-SMD 1000BASE-LX/LH SFP transceiver module, MMF/SMF, 1310nm, DOM
GLC-ZX-SMD Cisco GLC-ZX-SMD 1000BASE-ZX SFP transceiver module, SMF, 1550nm, DOM

Compare to Similar Items

Models ISR4451-X/K9 ISR4431/K9 ISR4351/K9 ISR4331/K9 ISR4321/K9
Aggregate Throughput 1 Gbps to 2 Gbps 500 Mbps to 1 Gbps 200 Mbps to 400 Mbps 100 Mbps to 300 Mbps 50 Mbps to 100 Mbps
Total onboard WAN or
LAN 10/100/1000 ports
4 4 3 3 2
RJ-45-based ports 4 4 3 2 2
SFP-based ports 4 4 3 2 1
Enhanced service-module slots 2 0 2 1 0
NIM slots 3 3 3 2 2
Onboard ISC slot 1 1 1 1 1
Rack height 2 1 2 1 1

Bảo hành 12 tháng.
Cisco Integrated Services Routers 4000 Series Datasheet vui lòng tải tại đây.
